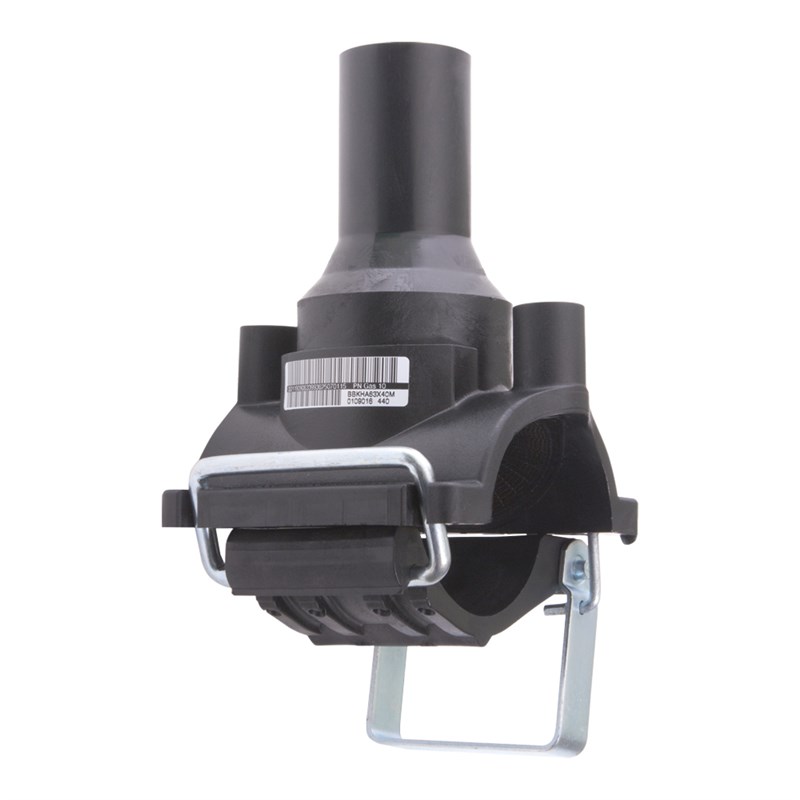

Electrofusion Branch Saddle - Underclamp
PE100, 4mm Automatic Pin, 20-63mm Outlet
Contact
Fusion
Sales and Product Enquiries
Electrofusion Branch Saddle - Underclamp (20-63mm outlet) for gas, water, mining and irrigation applications. 4mm automatic pin, PE100, Water PN16, Gas 10 Bar. Temperature range on electrofusion fittings -10°C/+40°C. Fusamatic Branch Saddles offer a solution for bypass, purging and off-takes on larger diameter pipe mains.
PE100 Electrofusion Branch Saddle - Underclamp (20-63mm outlet) with 4mm automatic pin. For gas, water, mining and irrigation applications.
All fittings are manufactured in virgin PE100 black polyethylene.
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.
| Variant 1209/01-001 | |
|---|---|
| Material: | Polyethylene (PE) |
| PN: | PN 16 |
Features
- Fusamatic branded
- PE100 Black
- Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations)
- 4mm automatic pin
- All electrofusion fittings are individually numbered and the barcodes and QR code provide full individual fitting traceability right back to all raw materials and critical components
- Welding barcode in accordance to ISO 13950. Traceability barcode in accordance to ISO 12176-4
- Fusamatic pin provides a totally automatic method to ensure the correct welding parameters are used
- Manual welding parameters moulded into the body of the fitting
- Permanently marked batch number and rising pin fusion indicator
- Sacrificial toggle-clamp underpart snaps quickly into place, saves the installer time, avoids the need for specialist tooling and provides proof of clamping during the Fusion cycle
Downloads

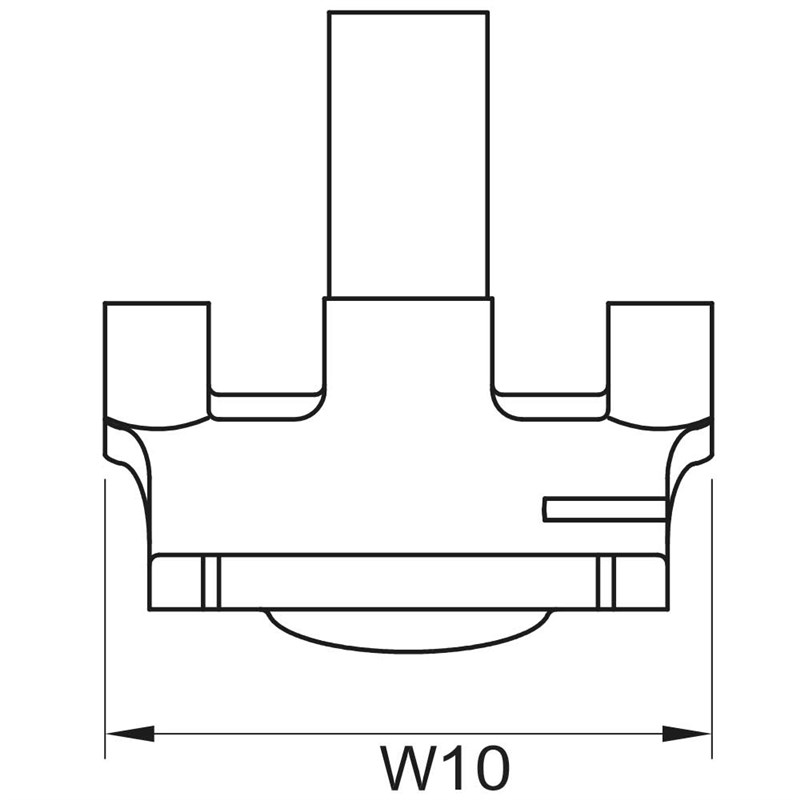

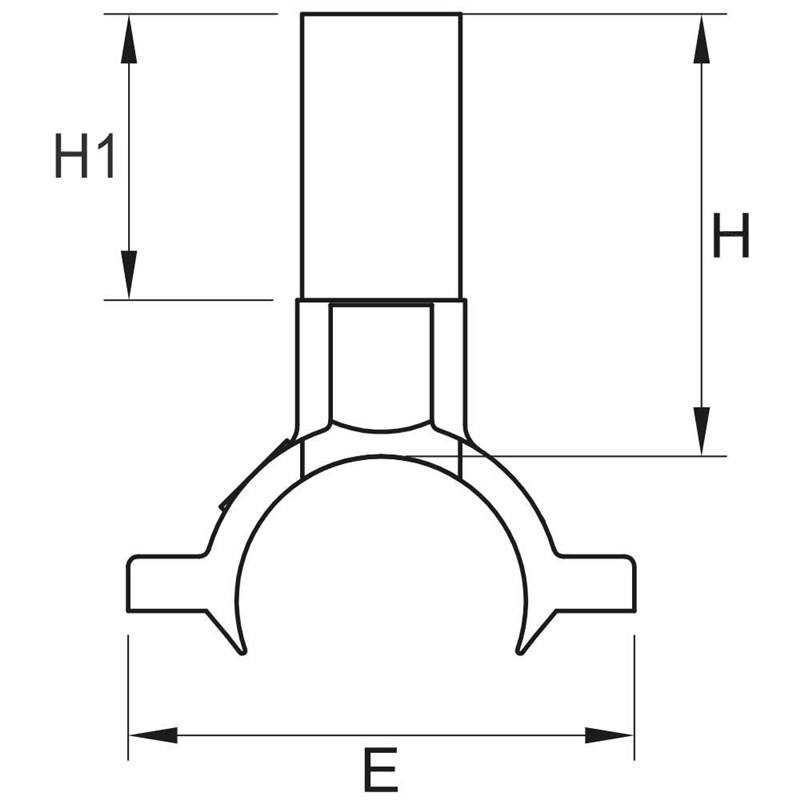

Reference nos. and dimensions:
| Ref. no. | Fitting Size mm |
H mm |
H1 mm |
W10 mm |
E mm |
SDR Range |
Fusion Time Secs |
Cooling Time Mins |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|
| BBKHFA40X20U | 40X20 | 93 | 51 | 103 | 83 | 11 | 50 | 5 | 0.19 |
| BBKHFA40X25U | 40X25 | 90 | 52 | 103 | 83 | 11 | 50 | 5 | 0.19 |
| BBKHFA40X32U | 40X32 | 90 | 57 | 103 | 83 | 11 | 50 | 5 | 0.19 |
| BBKHFA63X20U | 63X20 | 90 | 50 | 122 | 105 | 11 | 140 | 10 | 0.312 |
| BBKHFA63X25U | 63X25 | 106 | 59 | 122 | 105 | 11 | 140 | 10 | 0.312 |
| BBKHFA63X32U | 63X32 | 106 | 59 | 122 | 105 | 11 | 140 | 10 | 0.308 |
| BBKHFA90X20U | 90X20 | 91 | 51 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.44 |
| BBKHFA90X25U | 90X25 | 91 | 51 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.44 |
| BBKHFA90X32U | 90X32 | 91 | 51 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.44 |
| BBKHFA90X40U | 90X40 | 105 | 69 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.453 |
| BBKHFA90X50U | 90X50 | 105 | 82 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.47 |
| BBKHFA90X63U | 90X63 | 105 | 88 | 136 | 133 | 11 - 17.6 | 140 | 10 | 0.503 |
Components
Standards
-
The Fusion Group of Companies have over 140 local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.
Fusamatic branded electrofusion fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details. - 3rd party approved to EN ISO 15494
- 3rd party approved to EN 12201-3
- 3rd party approved to EN 1555-3
- 3rd party approved to ISO 4437-3
- 3rd party approved to ISO 4427-3
