Electrofusion Transition Saddle

PE100, 4mm Automatic Pin

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Electrofusion Transition Saddle for gas, water, mining and irrigation applications. 4mm automatic pin, PE100, Water PN16, Gas 10 Bar. Temperature range on electrofusion fittings -10°C/+40°C. Electrofusion Transition Saddles are available with a variety of female threaded BSP connections which permit a variety of solutions, such as under pressure connections, transition to imperial threaded systems, or connection to sensing, monitoring or air release systems.

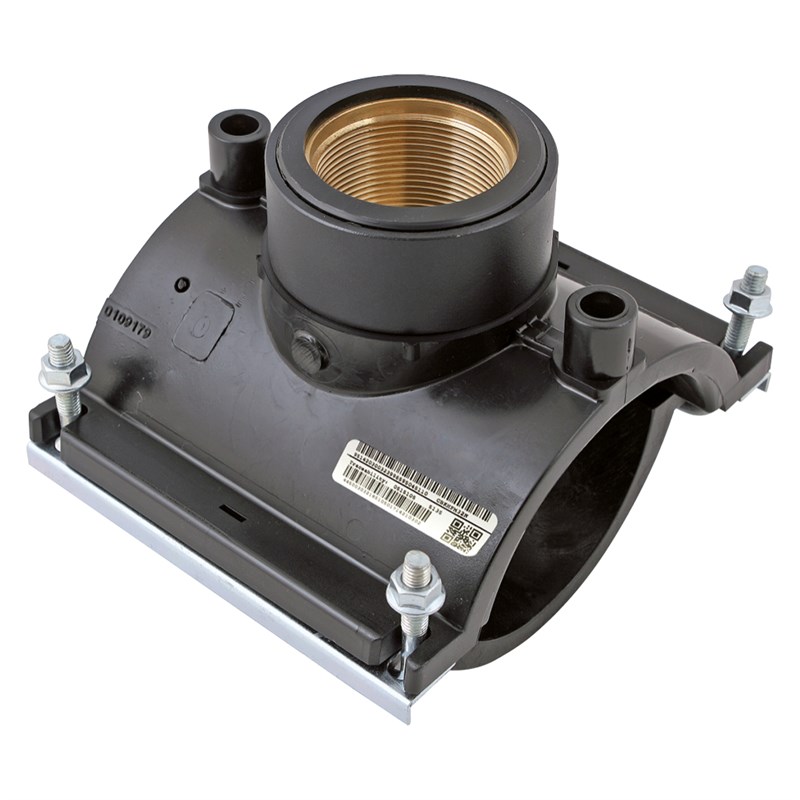

PE100 Electrofusion Transition Saddle with 4mm automatic pin.  For gas, water, mining and irrigation applications.
All fittings are manufactured in virgin PE100 black polyethylene.
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.

Variant 1212/01-001
Material: Polyethylene (PE)
PN: PN 16

Features

  • Fusamatic branded
  • PE100 Black and Brass CW614N
  • Water PN16 / Gas 10 Bar  (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • 4mm automatic pin
  • All electrofusion fittings are individually numbered and the barcodes and QR code provide full individual fitting traceability right back to all raw materials and critical components
  • Welding barcode in accordance to ISO 13950.  Traceability barcode in accordance to ISO 12176-4
  • Fusamatic pin provides a totally automatic method to ensure the correct welding parameters are used
  • Manual welding parameters moulded into the body of the fitting
  • Permanently marked batch number and rising pin fusion indicators

Downloads

Datasheet

Reference nos. and dimensions:

Scroll for more info

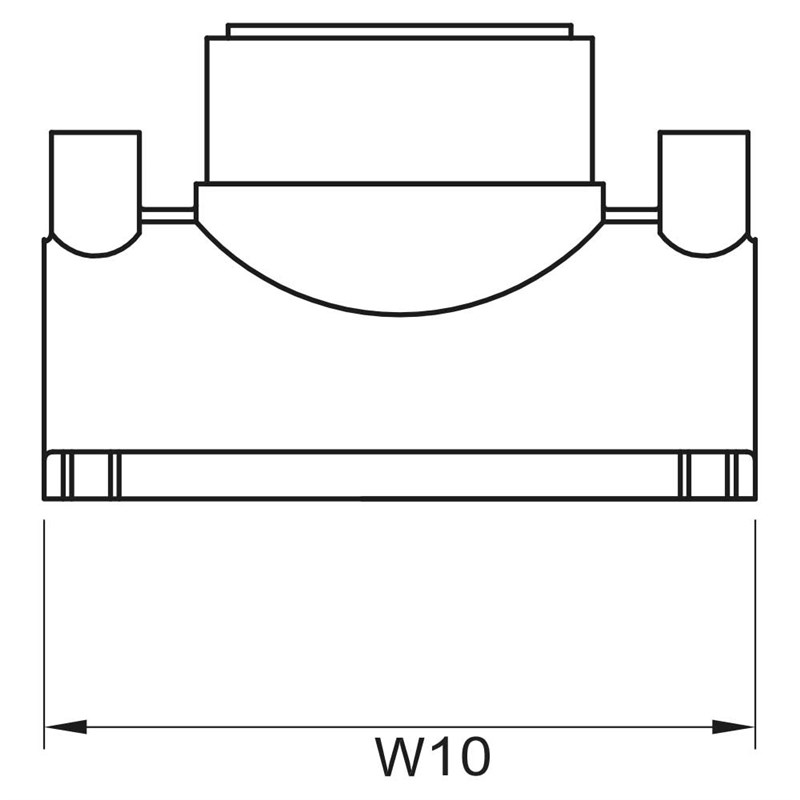

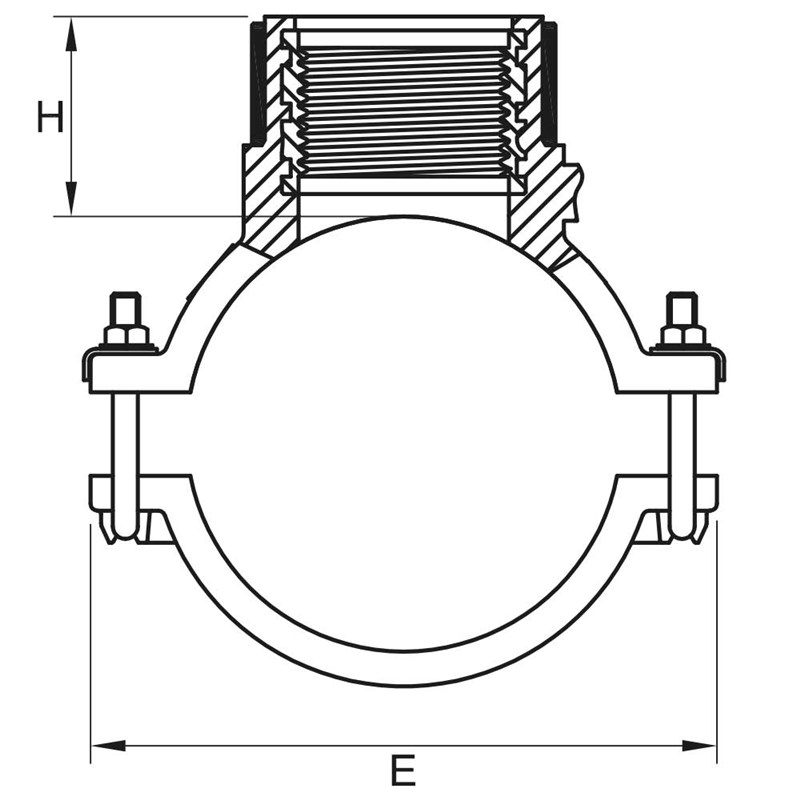

Ref. no. Fitting Size
mm		 H
mm		 W10
mm		 E
mm		 SDR Range
 Fusion Time
Secs		 Cooling Time
Mins		 Theoretical
weight / kg
XBBKHFA63X1.3 63X1.3 57 118 102 11 - 17.6 120 10 1.58
XBBKHFA90X1.3 90X1.3 57 144 154 11 - 17.6 80 10 1.89
XBBKHFA90X1.5 90X1.5 57 144 154 11 - 17.6 80 10 1.858
XBBKHFA90X2 90X2 57 144 154 11 - 17.6 80 10 1.625
XBBKHFA110X1.3 110X1.3 56 165 180 11 - 17.6 120 10 1.962
XBBKHFA110X1.5 110X1.5 56 165 180 11 - 17.6 120 10 1.94
XBBKHFA110X2 110X2 56 165 180 11 - 17.6 120 10 1.708
XBBKHFA125X1.3 125X1.3 58 165 180 11 - 17.6 120 10 1.905
XBBKHFA125X1.5 125X1.5 58 165 180 11 - 17.6 120 10 1.87
XBBKHFA125X2 125X2 58 165 180 11 - 17.6 120 10 1.64
XBBKHFA160X1.3 160X1.3 84 215 236 11 - 17.6 120 10 2.92
XBBKHFA160X1.5 160X1.5 84 215 236 11 - 17.6 120 10 2.788
XBBKHFA160X2 160X2 84 215 236 11 - 17.6 120 10 2.645
XBBKHFA180X1.3 180X1.3 77 215 236 11 - 17.6 140 10 2.4
XBBKHFA180X1.5 180X1.5 77 215 236 11 - 17.6 140 10 2.43
XBBKHFA180X2 180X2 77 215 236 11 - 17.6 140 10 2.6
XBBKHFA200X2 200X2 82 165 263 11 - 17.6 120 10 2.47
XBBKHFA225X2 225X2 80 165 291 11 - 17.6 120 10 2.65
XBBKHFA250X2 250X2 86 165 317 11 - 17.6 120 10 3.12
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have over 140 local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.

    Fusamatic branded electrofusion fittings are 3rd party certified against the product standards listed (other product certificates are available upon request).  Note: Regional variations may apply to some of the standards referenced, please contact us for further details.

  • 3rd party approved to EN ISO 15494
  • 3rd party approved to EN 12201-3
  • 3rd party approved to EN 1555-3
  • 3rd party approved to ISO 4437-3
  • 3rd party approved to ISO 4427-3
