Electrofusion Flanged Branch Saddle - Underclamp/Understrap
PE100, 4mm Manual Pin, Outlet 125 X DN100
Contact
Fusion
Sales and Product Enquiries
Electrofusion Flanged Branch Saddle - Underclamp/Understrap for gas, water, mining and irrigation applications. 4mm manual pin, PE100, Water PN16, Gas 10 Bar. Temperature range on electrofusion fittings -10°C/+40°C. Fusamatic Branch Saddles offer a solution for bypass, purging and off-takes on larger diameter pipe mains.

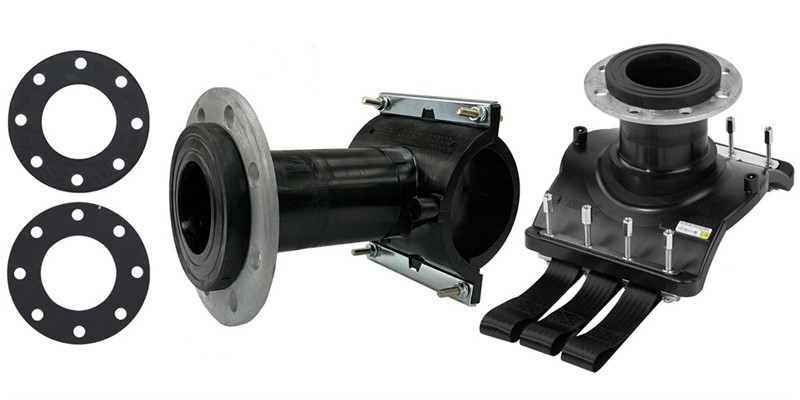

PE100 Electrofusion Flanged Branch Saddle - Underclamp/Understrap with 4mm manual pin. For gas, water, mining and irrigation applications.
All fittings are manufactured in virgin PE100 black polyethylene.
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.
| Variant 1216/00-001 | |
|---|---|
| Material: | Polyethylene (PE) |
| PN: | PN 16 |
Features
- Fusamatic branded
- PE100 Black
- Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations)
- 4mm manual pin
- All electrofusion fittings are individually numbered and the barcodes and QR code provide full individual fitting traceability right back to all raw materials and critical components
- Welding barcode in accordance to ISO 13950. Traceability barcode in accordance to ISO 12176-4
- Manual welding parameters moulded into the body of the fitting
- Permanently marked batch number
- Sacrificial underclamp/understrap locks fitting in place during weld cycle, and can be retained in-situ after installation
- Large electrofusion area enhances weld integrity
Downloads

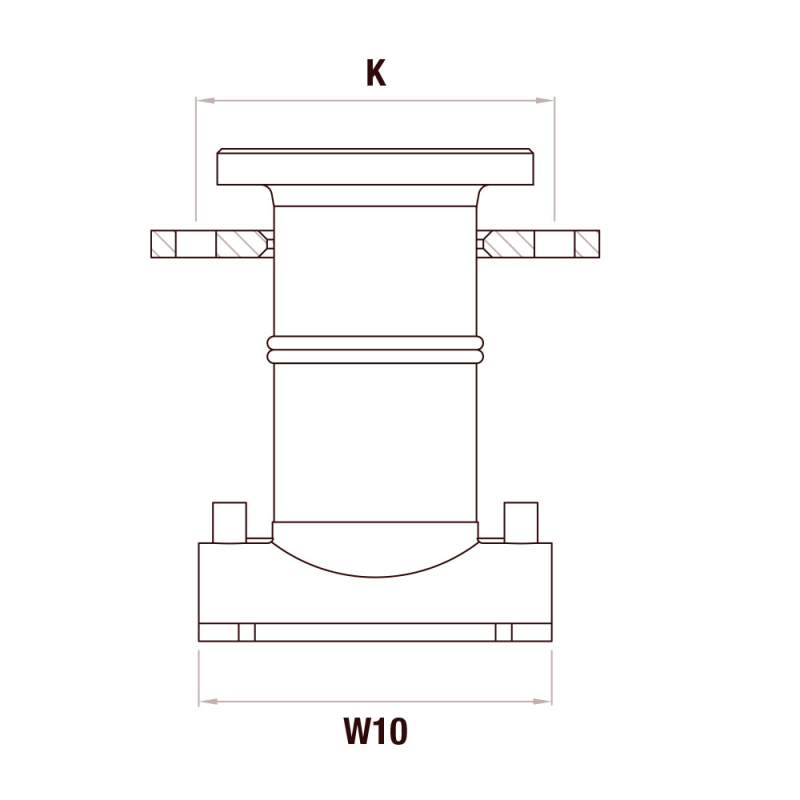

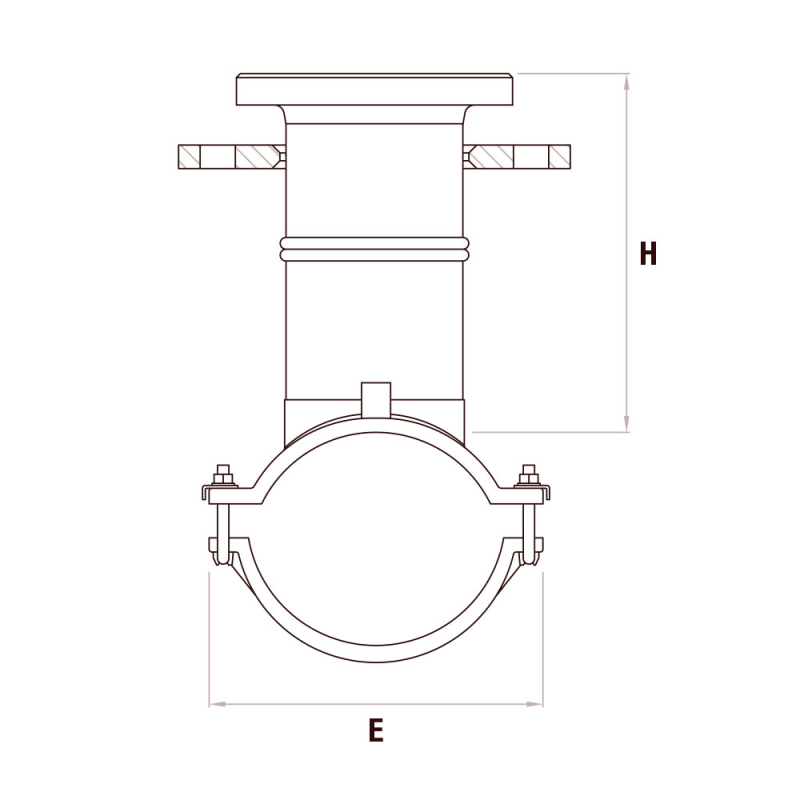

Reference nos. and dimensions:
| Ref. no. | Fitting Size mm |
H mm |
W10 mm |
E mm |
K mm |
SDR Range |
Fusion Time Secs |
Cooling Time Mins |
Theoretical weight / kg |
Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| FBKHFM225X100DP | 225X100 | 178 | 310 | 327 | 180 | 11 - 21 | 500 | 30 | 8.975 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
| FBKHFM250X100DP | 250X100 | 178 | 310 | 327 | 180 | 11 - 21 | 500 | 30 | 9.15 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
| FBKHFM315X100DP | 315X100 | 178 | 300 | 360 | 180 | 11 - 26 | 460 | 20 | 6.334 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
| FBKHFM355X100DP | 355X100 | 178 | 300 | 360 | 180 | 11 - 26 | 460 | 20 | 6.252 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
| FBKHFM400X100DP | 400X100 | 178 | 300 | 360 | 180 | 11 - 26 | 460 | 20 | 7.77 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
| FBKHFM630X100DP | 630X100 | 178 | 300 | 360 | 180 | 11 - 26 | 460 | 20 | 7.77 | DP = Flange branch saddle assembly and galvanised backing ring. Includes NBR and EDPM full face gaskets. Class B - GIS PL2 Part 4 |
Components
Standards
-
The Fusion Group of Companies have over 140 local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.
Fusamatic branded electrofusion fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details. - 3rd party approved to EN ISO 15494
- 3rd party approved to EN 12201-3
- 3rd party approved to EN 1555-3
- 3rd party approved to ISO 4437-3
- 3rd party approved to ISO 4427-3
