Electrofusion Flanged Tee
Electrofusion Flanged Tee for water, mining and irrigation applications. 4mm automatic pin, PE100, Water PN16. Temperature range on electrofusion fittings -10°C/+40°C. A flanged tee consists of a standard electrofusion tee with a factory welded stub flange and backing ring assembly - ideal for connecting flanged components such as water meters and valves.

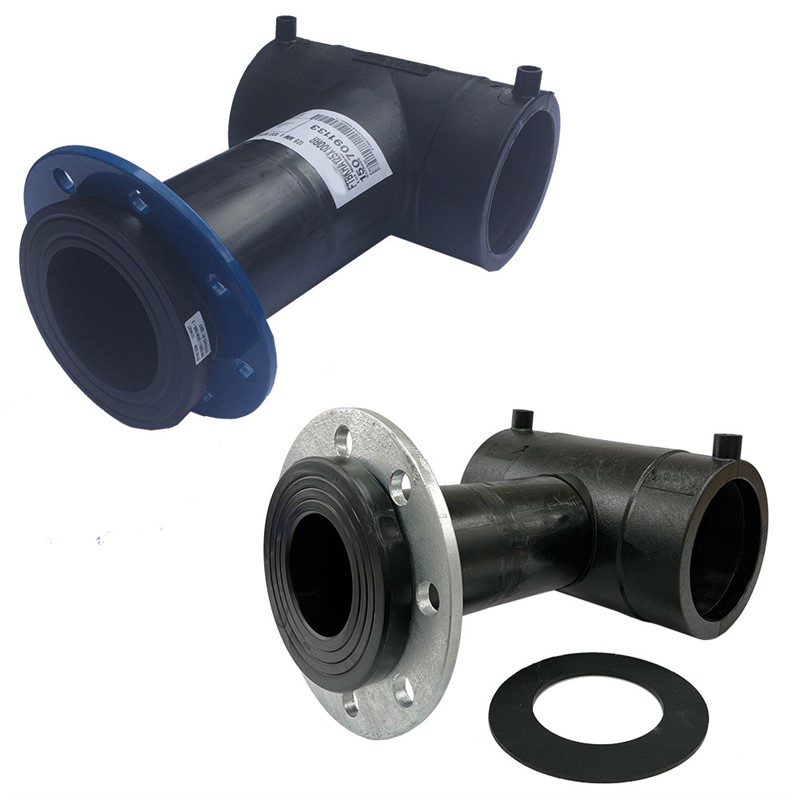

PE100 Electrofusion Flanged Tee with 4mm automatic pin. For water, mining and irrigation applications.
All fittings are manufactured in virgin PE100 black polyethylene.
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.
| Variant 1217/01-001 | |
|---|---|
| Material: | Polyethylene (PE) |
| PN: | PN 16 |
Features
- Fusamatic branded (fabricated)
- PE100 Black
- Water PN16 (Depending on PE pipe welded to and any local pipeline pressure regulations)
- Gas 10 Bar (upon request)
- 4mm automatic pin
- All electrofusion fittings are individually numbered and the barcodes and QR code provide full individual fitting traceability right back to all raw materials and critical components
- Welding barcode in accordance to ISO 13950. Traceability barcode in accordance to ISO 12176-4
- Fusamatic pin provides a totally automatic method to ensure the correct welding parameters are used
- Manual welding parameters moulded into the body of the fitting
- Permanently marked batch number and rising pin fusion indicators
Options
- For specific markets specialist Rilsan backing rings are available upon request - please confirm at time of ordering
Downloads

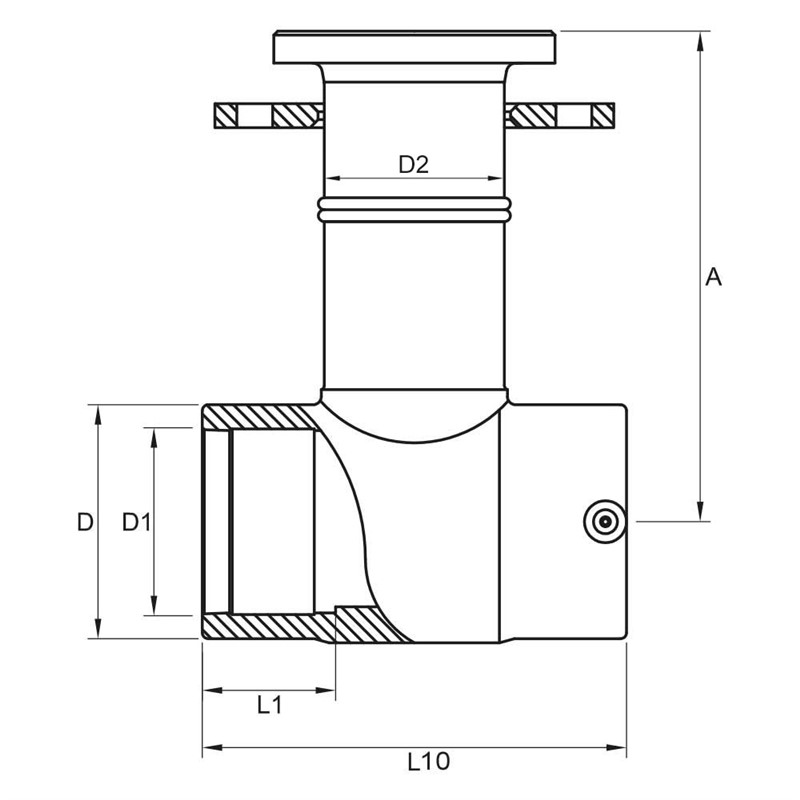

Reference nos. and dimensions:
| Ref. no. | Fitting Size mm |
L10 mm |
L1 mm |
D mm |
D1 mm |
D2 mm |
A mm |
SDR Range |
Fusion Time Secs |
Cooling Time Mins |
Theoretical weight / kg |
Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTBKHFA63X50 | 63X50 | 156 | 50 | 82 | 63 | 63 | 210 | 11 | 40 | 5 | 1.7 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA90X80 | 90X80 | 206.5 | 64 | 115 | 90 | 90 | 270 | 11 - 17.6 | 110 | 10 | 2.8 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA110X80 | 110X80 | 239 | 73 | 139 | 110 | 90 | 290 | 11 - 17.6 | 140 | 10 | 3.4 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA110X100 | 110X110 | 239 | 73 | 139 | 110 | 110 | 300 | 11 - 17.6 | 140 | 10 | 3.9 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA125X80 | 125X80 | 264 | 80 | 156 | 125 | 90 | 310 | 11 - 17.6 | 200 | 15 | 4.1 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA125X100 | 125X100 | 264 | 80 | 156 | 125 | 125 | 340 | 11 - 17.6 | 200 | 15 | 4.6 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA160X80 | 160X80 | 313 | 89 | 200 | 160 | 90 | 380 | 11 - 17.6 | 360 | 20 | 7 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA160X100 | 160X110 | 313 | 89 | 200 | 160 | 160 | 610 | 11 - 17.6 | 360 | 20 | 7.7 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA160X150 | 160X150 | 313 | 89 | 200 | 160 | 160 | 400 | 11 - 17.6 | 360 | 20 | 8.8 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA180X80 | 180X80 | 334 | 90 | 222 | 180 | 180 | 590 | 11 - 17.6 | 360 | 20 | 8.7 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA180X100 | 180X100 | 334 | 90 | 222 | 180 | 180 | 620 | 11 - 17.6 | 360 | 20 | 9.3 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
| FTBKHFA180X150 | 180X150 | 334 | 90 | 222 | 180 | 180 | 420 | 11 - 17.6 | 360 | 20 | 9.9 | Fabricated Fitting - 'A' height dimension may vary subject to component availability |
Components
Standards
-
The Fusion Group of Companies have over 140 local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.
Fusamatic branded electrofusion fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details.
Components certified against;
- 3rd party approved to EN 12201-3
