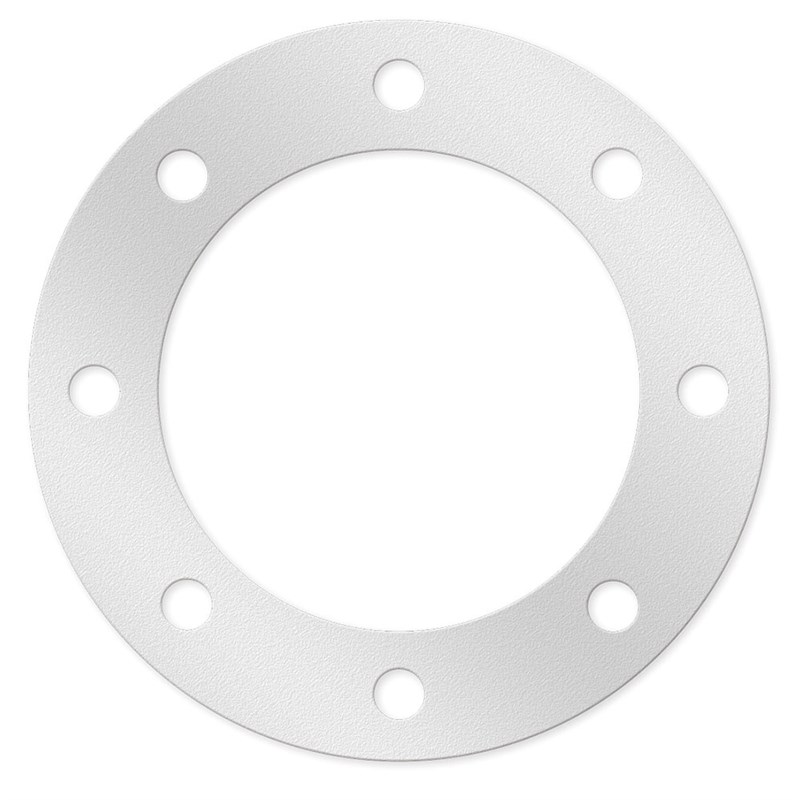

Flange, Stainless Steel

PN16, EN 1092-1 Drilling Pattern

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Flange, stainless steel. For gas, water, mining and irrigation applications. PN16, EN 1092-1 drilling pattern.

PN16, EN 1092-1 Drilling Pattern, Flange, stainless steel.  For gas, water, mining and irrigation applications.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1258/55-001
PN: PN 16

Features

  • Non Fusamatic Branded
  • Stainless Steel G316/316L
  • PN16
  • EN 1092-1 drilling pattern

Downloads

Datasheet

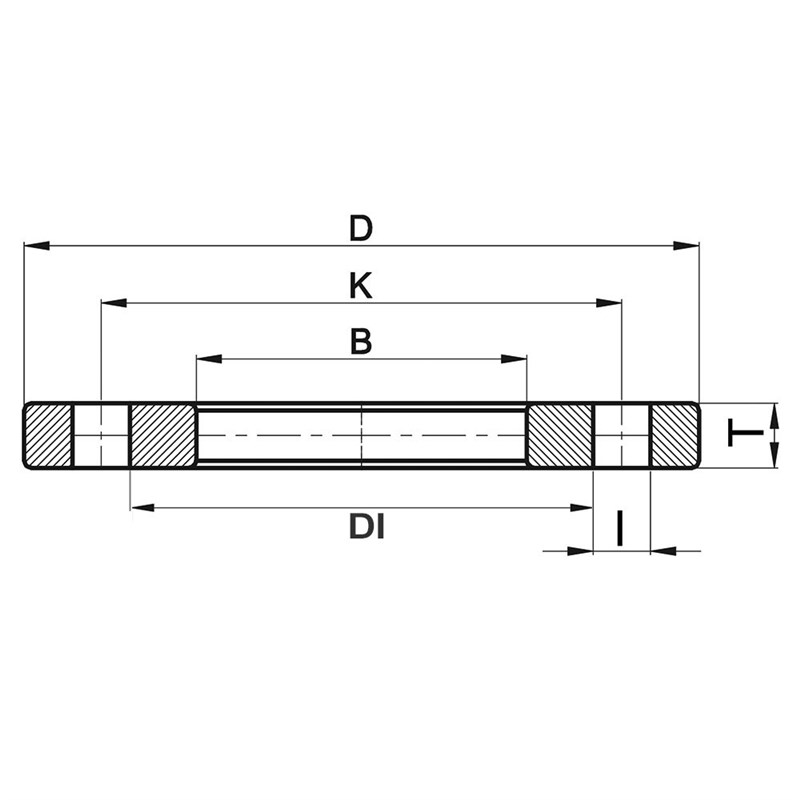

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm		 Pipe dia.
mm		 DN
mm		 D
mm		 B
mm		 K
mm		 Range
mm		 Bolt
No.		 DI
mm		 I
mm		 Bolt Size
(Metric)		 Theoretical
weight / kg
SBR020X015NP16 020X015 20 15 95 28 65 8 4 51 14 M12 0.32
SBR025X020NP16 025X020 25 20 105 34 75 8 4 61 14 M12 0.35
SBR032X025NP16 032X025 32 25 115 42 85 8 4 71 14 M12 0.39
SBR040X032NP16 040X032 40 32 140 51 100 8 4 82 18 M16 0.46
SBR050X040NP16 050X040 50 40 150 62 110 8 4 92 18 M16 0.55
SBR063X050NP16 063X050 63 50 165 78 125 8 8 107 18 M16 0.86
SBR075X065NP16 075X065 75 65 185 92 145 8 4 127 18 M16 0.98
SBR090X080NP16 090X080 90 80 200 108 160 8 8 142 18 M16 1.38
SBR110X100NP16 110X100 110 100 220 128 180 8 8 162 18 M16 1.45
SBR125X100NP16 125X100 125 100 220 133 180 8 8 162 18 M16 1.39
SBR140X125NP16 140X125 140 125 250 158 210 10 8 192 18 M16 3.78
SBR160X150NP16 160X150 160 150 285 178 240 10 8 218 22 M20 2.82
SBR180X150NP16 180X150 180 150 285 188 240 10 8 218 22 M20 2.59
SBR200X200NP16 200X200 200 200 340 235 295 10 12 273 22 M20 4.04
SBR225X200NP16 225X200 225 200 340 238 295 10 12 273 22 M20 3.28
SBR250X250NP16 250X250 250 250 405 288 355 15 12 329 26 M24 6.75
SBR280X250NP16 280X250 280 250 405 294 355 15 12 329 26 M24 6.43
SBR315X300NP16 315X300 315 300 460 338 410 20 12 384 26 M24 11
SBR355X350NP16 355X350 355 350 520 376 470 20 16 444 26 M24 14.58
SBR400X400NP16 400X400 400 400 580 430 525 25 16 495 30 M27 21.13
SBR450X450NP16 450X450 450 450 640 465 585 25 20 555 30 M27 27.46
SBR450X500NP16 450X500 450 500 715 517 650 25 20 617 33 M30 34.38
SBR500X500NP16 500X500 500 500 715 533 650 25 20 617 33 M30 31.07
SBR560X600NP16 560X600 560 600 840 618 770 25 20 734 36 M33 45.7
SBR630X600NP16 630X600 630 600 840 645 770 25 20 734 36 M33 40.25
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.



    Connecting dimensions (always check compatability & fit with HDPE stub flange adaptor):

     - EN 1092
