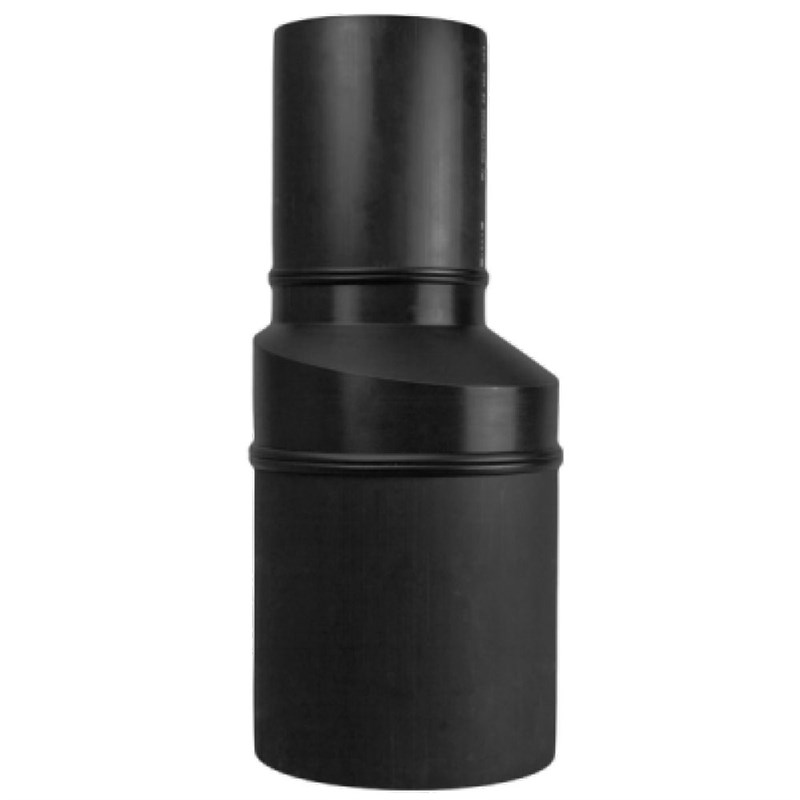

Eccentric Spigot Reducer

PE100, SDR 11

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Eccentric Spigot Reducer. For water, mining and irrigation applications. PE100, SDR 11, Water PN16. Temperature range on spigot fittings -10˚C to +40˚C (Welding temperature range -10˚C to +40˚C using Fusamatic electrofusion systems. For butt fusion jointing +5˚C to +40˚C).

PE100, SDR 11, Eccentric Spigot Reducer for water, mining and irrigation applications.

All fittings are manufactured in virgin PE100 black polyethylene.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1252/06-001
Material: Polyethylene (PE)
PN: PN 16

Features

  • Non Fusamatic branded
  • PE100 Black
  • Water PN16 (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • SDR 11

Downloads

Datasheet

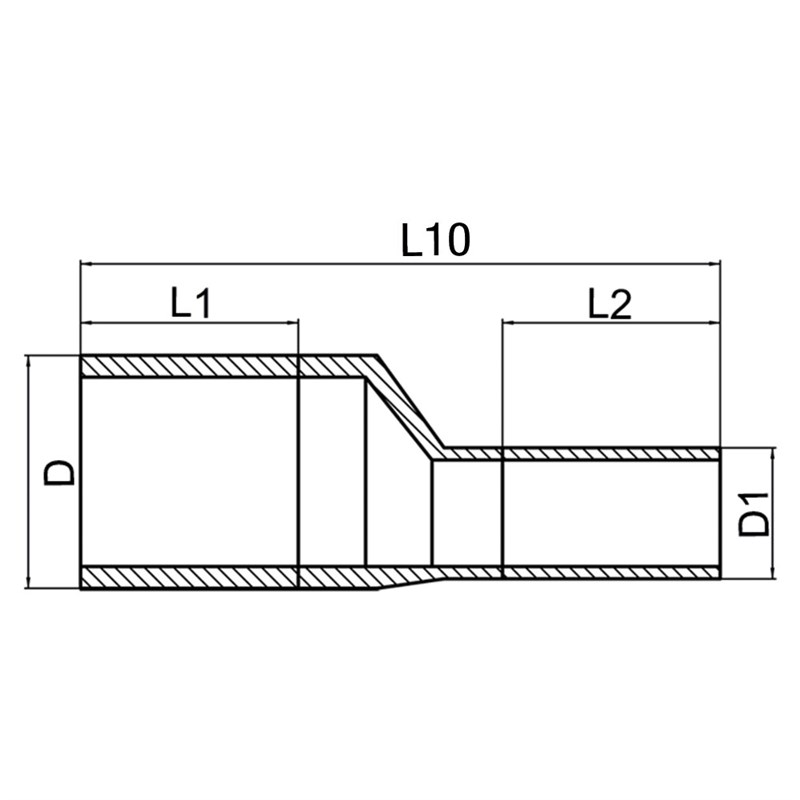

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm		 D
mm		 D1
mm		 L10
mm		 L1
mm		 L2
mm		 Theoretical
weight / kg
SPREHK160X90N 160X90 160 90 440 150 150 2.1
SPREHK160X110N 160X110 160 110 420 150 150 2.1
SPREHK160X125N 160X125 160 125 410 150 150 2.3
SPREHK160X140N 160X140 160 140 400 150 150 2.4
SPREHK180X110N 180X110 180 110 440 150 150 2.7
SPREHK180X125N 180X125 180 125 430 150 150 2.8
SPREHK180X140N 180X140 180 140 420 150 150 2.9
SPREHK180X160N 180X160 180 160 400 150 150 3.1
SPREHK200X125N 200X125 200 125 454 150 150 3.5
SPREHK200X140N 200X140 200 140 430 150 150 3.5
SPREHK200X160N 200X160 200 160 420 150 150 3.7
SPREHK200X180N 200X180 200 180 400 150 150 3.8
SPREHK225X140N 225X140 225 140 460 150 150 4.5
SPREHK225X160N 225X160 225 160 440 150 150 4.6
SPREHK225X180N 225X180 225 180 420 150 150 4.7
SPREHK225X200N 225X200 225 200 410 150 150 4.9
SPREHK250X160N 250X160 250 160 570 250 150 7.4
SPREHK250X180N 250X180 250 180 550 250 150 7.5
SPREHK250X200N 250X200 250 200 530 250 150 7.6
SPREHK250X225N 250X225 250 225 510 250 150 7.8
SPREHK280X180N 280X180 280 180 580 250 150 9.5
SPREHK280X200N 280X200 280 200 560 250 150 9.6
SPREHK280X225N 280X225 280 225 540 250 150 9.7
SPREHK280X250N 280X250 280 250 620 250 250 11.6
SPREHK315X200N 315X200 315 200 640 300 150 13.6
SPREHK315X225N 315X225 315 225 620 300 150 13.7
SPREHK315X250N 315X250 315 250 700 300 250 15.4
SPREHK315X280N 315X280 315 280 680 300 250 16.1
SPREHK355X225N 355X225 355 225 660 300 150 17.8
SPREHK355X250N 355X250 355 250 740 300 250 19.5
SPREHK355X280N 355X280 355 280 700 300 250 19.6
SPREHK355X315N 355X315 355 315 730 300 300 21.8
SPREHK400X250N 400X250 400 250 781 300 250 25
SPREHK400X280N 400X280 400 280 750 300 250 25.1
SPREHK400X315N 400X315 400 315 770 300 300 26.9
SPREHK400X355N 400X355 400 355 740 300 300 28.1
SPREHK450X280N 450X280 450 280 801 300 250 32.6
SPREHK450X315N 450X315 450 315 821 300 300 34.2
SPREHK450X355N 450X355 450 355 790 300 300 35.2
SPREHK450X400N 450X400 450 400 750 300 300 36.1
SPREHK500X280N 500X280 500 280 861 300 250 42.7
SPREHK500X315N 500X315 500 315 911 350 300 45.6
SPREHK500X355N 500X355 500 355 880 350 300 46.5
SPREHK500X400N 500X400 500 400 850 350 300 47.8
SPREHK500X450N 500X450 500 450 810 350 300 49
SPREHK560X400N 560X400 560 400 901 350 300 60.1
SPREHK560X450N 560X450 560 450 860 350 300 60.9
SPREHK560X500N 560X500 560 500 870 350 350 65.1
SPREHK630X450N 630X450 630 450 921 350 300 78.2
SPREHK630X500N 630X500 630 500 931 350 350 82
SPREHK630X560N 630X560 630 560 880 350 350 83.3
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.

    This range of spigot fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details.

  • 3rd party approved to EN 12201-3
