Short Spigot Reducer

PE100, SDR 11

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Short Spigot Reducer. For water, mining and irrigation applications. PE100, SDR 11, Water PN16. Temperature range on spigot fittings -10˚C to +40˚C (Welding temperature range -10˚C to +40˚C using Fusamatic electrofusion systems. For butt fusion jointing +5˚C to +40˚C).

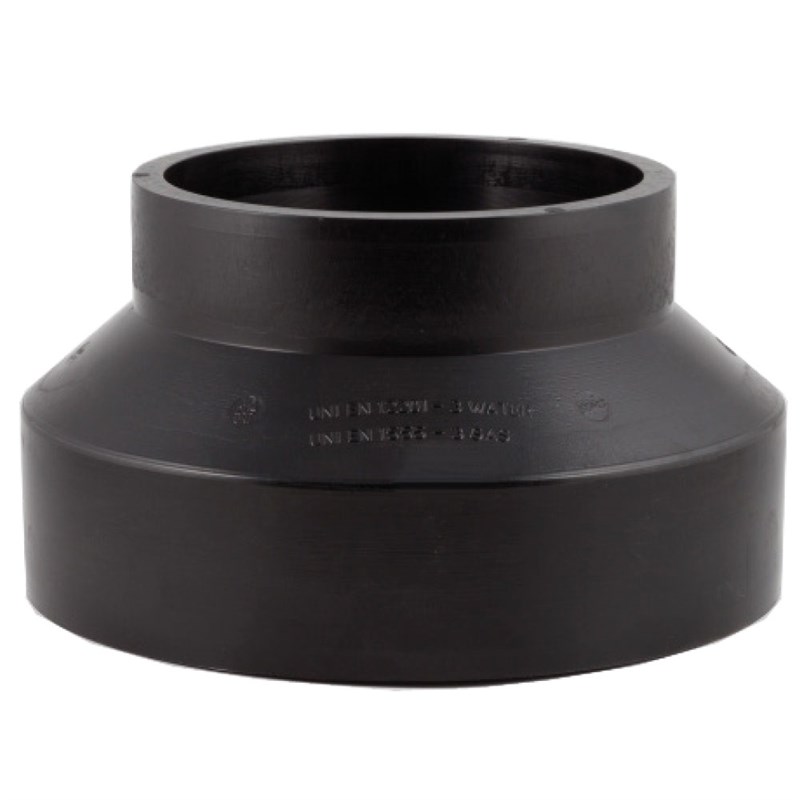

PE100, SDR 11, Short Spigot Reducer for water, mining and irrigation applications.

All fittings are manufactured in virgin PE100 black polyethylene.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1252/12-001
Material: Polyethylene (PE)
PN: PN 16

Features

  • Non Fusamatic branded
  • PE100 Black
  • Water PN16 (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • Gas 10 Bar (upon request)
  • SDR 11

Downloads

Datasheet

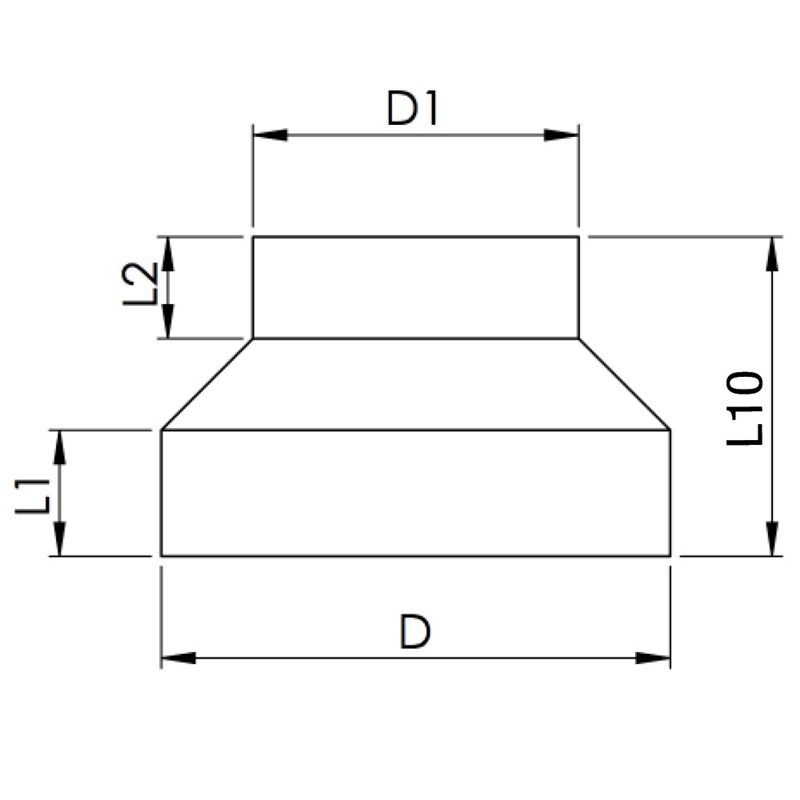

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm		 D
mm		 D1
mm		 L10
mm		 L1
mm		 L2
mm		 Theoretical
weight / kg
SSRHK25X20N 25X20 25 20 68 20 20 0.004
SSRHK32X20N 32X20 32 20 68 23 23 0.01
SSRHK32X25N 32X25 32 25 38 16 14 0.05
SSRHK40X20N 40X20 40 20 50 18 13 0.01
SSRHK40X25N 40X25 40 25 47 19 14 0.05
SSRHK40X32N 40X32 40 32 39 19 15 0.05
SSRHK50X25N 50X25 50 25 53 19 17 0.08
SSRHK50X32N 50X32 50 32 44 18 14 0.05
SSRHK50X40N 50X40 50 40 46 20 19 0.05
SSRHK63X32N 63X32 63 32 63 23 22 0.1
SSRHK63X40N 63X40 63 40 58 24 18 0.1
SSRHK63X50N 63X50 63 50 54 25 20 0.1
SSRHK75X32N 75X32 75 32 70 25 10 0.07
SSRHK75X40N 75X40 75 40 70 29 22 0.1
SSRHK75X50N 75X50 75 50 71 28 23 0.1
SSRHK75X63N 75X63 75 63 70 29 31 0.1
SSRHK90X50N 90X50 90 50 73 26 22 0.1
SSRHK90X63N 90X63 90 63 71 29 24 0.1
SSRHK90X75N 90X75 90 75 80 33 33 0.16
SSRHK110X50N 110X50 110 50 90 40 29 0.2
SSRHK110X63N 110X63 110 63 105 40 36 0.25
SSRHK110X75N 110X75 110 75 90 34 35 0.3
SSRHK110X90N 110X90 110 90 104 40 41 0.29
SSRHK125X63N 125X63 125 63 100 40 34 0.3
SSRHK125X75N 125X75 125 75 98 32 19 0.31
SSRHK125X90N 125X90 125 90 110 42 41 0.37
SSRHK125X110N 125X110 125 110 100 40 48 0.4
SSRHK140X75N 140X75 140 75 110 49 37 0.5
SSRHK140X90N 140X90 140 90 126 45 28 0.4
SSRHK140X110N 140X110 140 110 126 45 34 0.5
SSRHK140X125N 140X125 140 125 128 45 42 0.6
SSRHK160X90N 160X90 160 90 120 53 37 0.7
SSRHK160X110N 160X110 160 110 125 50 39 0.7
SSRHK160X125N 160X125 160 125 120 54 45 0.7
SSRHK160X140N 160X140 160 140 98 44 43 0.8
SSRHK180X90N 180X90 180 90 130 59 37 1
SSRHK180X110N 180X110 180 110 130 60 40 1
SSRHK180X125N 180X125 180 125 152 62 42 1.1
SSRHK180X140N 180X140 180 140 135 51 47 1.02
SSRHK180X160N 180X160 180 160 131 60 55 1.2
SSRHK200X140N 200X140 200 140 140 60 48 1.3
SSRHK200X160N 200X160 200 160 140 60 54 1.5
SSRHK200X180N 200X180 200 180 140 60 61 1.4
SSRHK225X140N 225X140 225 140 160 65 57 1.8
SSRHK225X160N 225X160 225 160 190 65 50 2
SSRHK225X180N 225X180 225 180 190 65 55 2.1
SSRHK225X200N 225X200 225 200 160 71 71 1.9
SSRHK250X160N 250X160 250 160 157 55 55 2.12
SSRHK250X180N 250X180 250 180 150 62 50 2.36
SSRHK250X200N 250X200 250 200 138 60 50 2.28
SSRHK250X225N 250X225 250 225 142 50 68 2.17
SSRHK280X180N 280X180 280 180 200 85 70 3.2
SSRHK280X200N 280X200 280 200 160 72 51 2.83
SSRHK280X225N 280X225 280 225 154 72 57 2.79
SSRHK280X250N 280X250 280 250 150 71 64 2.87
SSRHK315X225N 315X225 315 225 184 82 57 4.02
SSRHK315X250N 315X250 315 250 178 81 62 4.06
SSRHK315X280N 315X280 315 280 175 79 72 4.15
SSRHK355X225N 355X225 355 225 213 92 57 5.24
SSRHK355X250N 355X250 355 250 195 87 62 5.27
SSRHK355X280N 355X280 355 280 200 87 77 5.82
SSRHK355X315N 355X315 355 315 188 88 78 5.73
SSRHK400X225N 400X225 400 225 160 64 40 5.7
SSRHK400X250N 400X250 400 250 150 61 40 5.4
SSRHK400X280N 400X280 400 280 226 96 73 7.79
SSRHK400X315N 400X315 400 315 218 97 83 7.94
SSRHK400X355N 400X355 400 355 208 97 92 8.02
SSRHK450X280N 450X280 450 280 160 65 40 7.5
SSRHK450X315N 450X315 450 315 206 64 76 7.8
SSRHK450X355N 450X355 450 355 203 64 92 9.04
SSRHK450X400N 450X400 450 400 188 64 99 9.13
SSRHK500X315N 500X315 500 315 170 71 40 10
SSRHK500X355N 500X355 500 355 210 62 81 11.7
SSRHK500X400N 500X400 500 400 210 63 96 11.54
SSRHK500X450N 500X450 500 450 166 63 63 15.07
SSRHK560X355N 560X355 560 355 170 65 40 12.6
SSRHK560X400N 560X400 560 400 240 60 98 15.08
SSRHK560X450N 560X450 560 450 187 60 65 13.24
SSRHK560X500N 560X500 560 500 192 62 61 12.34
SSRHK630X400N 630X400 630 400 190 78 40 18.2
SSRHK630X450N 630X450 630 450 234 60 68 19.57
SSRHK630X500N 630X500 630 500 192 62 61 18.12
SSRHK630X560N 630X560 630 560 188 64 65 17.34
SSRHK710X560N 710X560 710 560 160 66 40 21.64
SSRHK710X630N 710X630 710 630 160 66 62 21.4
SSRHK800X710N 800X710 800 710 160 62 62 26.14
SSRHK900X800N 900X800 900 800 160 62 62 31.5
SSRHK1000X900N 1000X900 1000 900 170 65 56 42.35
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.

    This range of spigot fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details.

  • 3rd party approved to EN 12201-3
0 Files In the package
