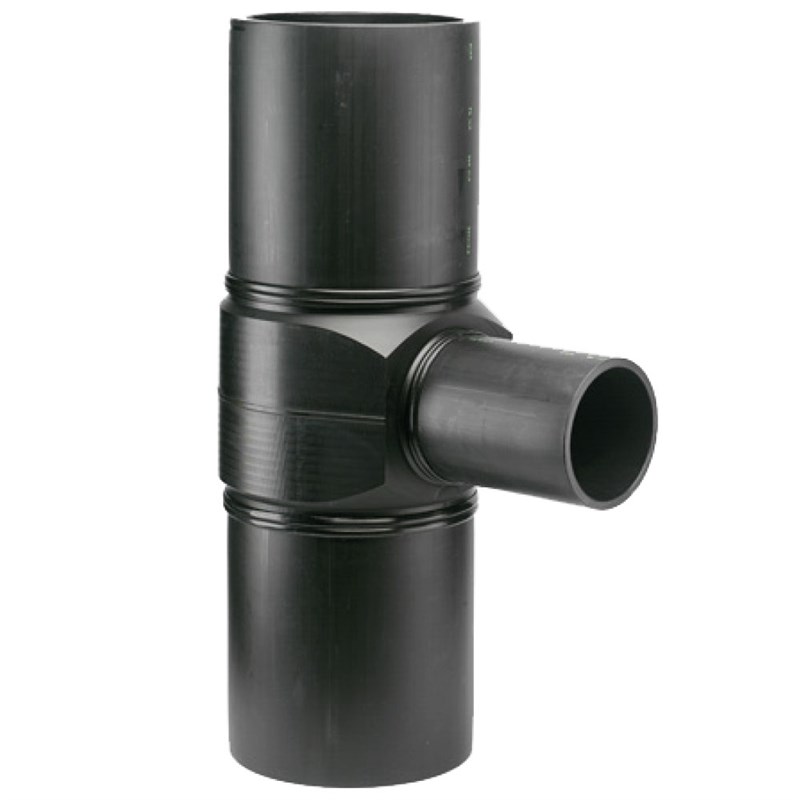

Spigot Reducing and Equal Tee (Machined)

PE100, SDR 11

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Spigot Reducing and Equal Tee (Machined). For water, mining and irrigation applications. PE100, SDR 11, Water PN16. Temperature range on spigot fittings -10˚C to +40˚C (Welding temperature range -10˚C to +40˚C using Fusamatic electrofusion systems. For butt fusion jointing +5˚C to +40˚C).

PE100, SDR 11, Spigot Reducing and Equal Tee (Machined) for water, mining and irrigation applications.

All fittings are manufactured in virgin PE100 black polyethylene.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1254/26-001
Material: Polyethylene (PE)
PN: PN 16

Features

  • Non Fusamatic branded
  • PE100 Black
  • Water PN16 (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • Gas 10 Bar (upon request)
  • SDR 11

Downloads

Datasheet

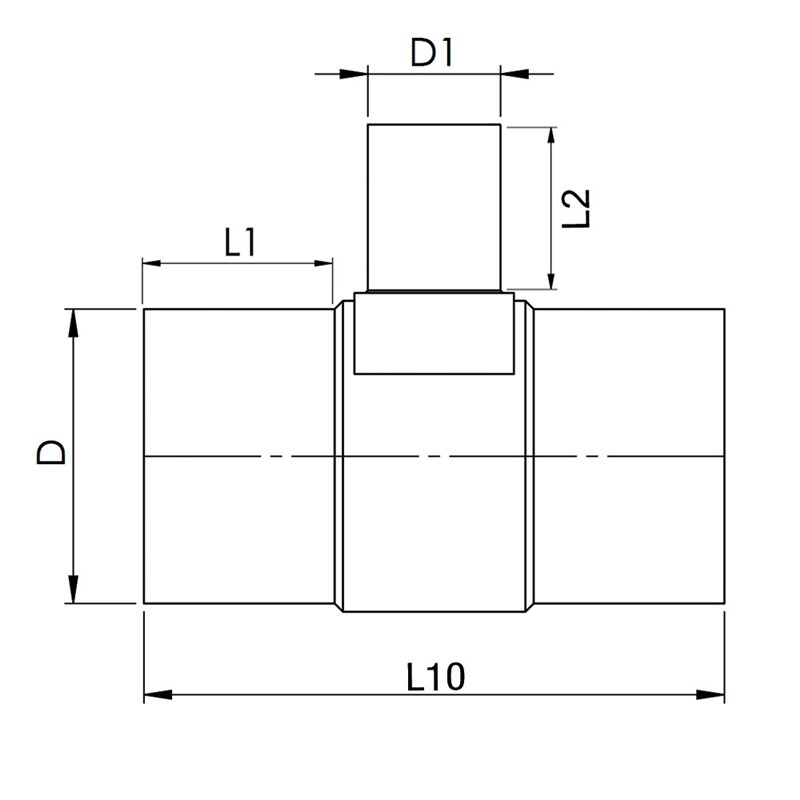

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm		 D
mm		 D1
mm		 L10
mm		 L1
mm		 L2
mm		 Theoretical
weight / kg
MLSRTHK250X63N 250X63 250 63 676 250 150 11.7
MLSRTHK250X75N 250X75 250 75 691 250 150 12.1
MLSRTHK250X90N 250X90 250 90 706 250 150 12.6
MLSRTK250X110N 250X110 250 110 726 250 150 13.2
MLSRTK250X125N 250X125 250 125 741 250 150 13.7
MLSRTK250X140N 250X140 250 140 756 250 150 14.2
MLSRTK250X160N 250X160 250 160 777 250 150 15
MLSRTK250X180N 250X180 250 180 797 250 150 15.8
MLSRTK250X200N 250X200 250 200 817 250 150 16.6
MLSRTK250X225N 250X225 250 225 844 250 150 17.8
MLSRTHK280X63N 280X63 280 63 676 250 150 14.6
MLSRTHK280X75N 280X75 280 75 691 250 150 15.1
MLSRTHK280X90N 280X90 280 90 706 250 150 15.6
MLSRTK280X110N 280X110 280 110 726 250 150 16.3
MLSRTK280X125N 280X125 280 125 741 250 150 16.9
MLSRTK280X140N 280X140 280 140 756 250 150 17.5
MLSRTK280X160N 280X160 280 160 777 250 150 18.4
MLSRTK280X180N 280X180 280 180 797 250 150 19.3
MLSRTK280X200N 280X200 280 200 817 250 150 20.2
MLSRTK280X225N 280X225 280 225 844 250 150 21.5
MLSRTHK315X75N 315X75 315 75 791 300 150 21.4
MLSRTHK315X90N 315X90 315 90 806 300 150 22
MLSRTK315X110N 315X110 315 110 826 300 150 22.9
MLSRTK315X125N 315X125 315 125 841 300 150 23.5
MLSRTK315X140N 315X140 315 140 856 300 150 24.2
MLSRTK315X160N 315X160 315 106 877 300 150 25.2
MLSRTK315X180N 315X180 315 180 897 300 150 26.2
MLSRTK315X200N 315X200 315 200 917 300 150 27.3
MLSRTK315X225N 315X225 315 225 944 300 150 28.8
MLSRTK315X250N 315X250 315 250 967 300 250 31.7
MLSRTHK355X90N 355X90 355 90 806 300 150 27.8
MLSRTK355X110N 355X110 355 110 826 300 150 28.8
MLSRTK355X125N 355X125 355 125 841 300 150 29.6
MLSRTK355X140N 355X140 355 140 856 300 150 30.4
MLSRTK355X160N 355X160 355 160 877 300 150 31.6
MLSRTK355X180N 355X180 355 180 897 300 150 32.7
MLSRTK355X200N 355X200 355 200 917 300 150 34
MLSRTK355X225N 355X225 355 225 944 300 250 35.7
MLSRTK355X250N 355X250 355 250 967 300 250 38.8
MLSRTK355X280N 355X280 355 280 997 300 250 41.3
MLSRTK400X110N 400X110 400 110 997 300 150 36.1
MLSRTK400X125N 400X125 400 125 841 300 150 37.1
MLSRTK400X140N 400X140 400 140 856 300 150 38
MLSRTK400X160N 400X160 400 160 877 300 150 39.4
MLSRTK400X180N 400X180 400 180 897 300 150 40.8
MLSRTK400X200N 400X200 400 200 917 300 150 42.2
MLSRTK400X225N 400X225 400 225 944 300 150 44.1
MLSRTK400X250N 400X250 400 250 967 300 250 47.5
MLSRTK400X280N 400X280 400 280 997 300 250 50.3
MLSRTK400X315N 400X315 400 315 1032 300 300 55.1
MLSRTK450X125N 450X125 450 125 841 300 150 46.4
MLSRTK450X140N 450X140 450 140 856 300 150 47.6
MLSRTK450X160N 450X160 450 160 877 300 150 49.2
MLSRTK450X180N 450X180 450 180 897 300 150 50.8
MLSRTK450X200N 450X200 450 200 917 300 150 52.4
MLSRTK450X225N 450X225 450 225 944 300 150 54.7
MLSRTK450X250N 450X250 450 250 967 300 250 58.3
MLSRTK450X280N 450X280 450 280 997 300 250 61.5
MLSRTK450X315N 450X315 450 315 1032 300 300 66.6
MLSRTK450X355N 450X355 450 355 1072 300 300 71.7
MLSRTK500X140N 500X140 500 140 956 350 150 64.7
MLSRTK500X160N 500X160 500 160 977 350 150 66.6
MLSRTK500X180N 500X180 500 180 997 350 150 68.5
MLSRTK500X200N 500X200 500 200 1017 350 150 70.4
MLSRTK500X225N 500X225 500 225 1044 350 150 73
MLSRTK500X250N 500X250 500 250 1067 350 250 77
MLSRTK500X280N 500X280 500 280 1097 350 250 80.5
MLSRTK500X315N 500X315 500 315 1132 350 300 86.2
MLSRTK500X355N 500X355 500 355 1172 350 300 91.8
MLSRTK500X400N 500X400 500 400 1218 350 300 98.7
MLSRTK560X160N 560X160 560 160 1005 350 150 85.1
MLSRTK560X180N 560X180 560 180 1025 350 150 87.4
MLSRTK560X200N 560X200 560 200 1045 350 150 89.6
MLSRTK560X225N 560X225 560 225 1070 350 150 92.6
MLSRTK560X250N 560X250 560 250 1095 350 250 97.1
MLSRTK560X280N 560X280 560 280 1125 350 250 101.2
MLSRTK560X315N 560X315 560 315 1160 350 300 107.4
MLSRTK560X355N 560X355 560 355 1200 350 300 113.8
MLSRTK560X400N 560X400 560 400 1246 350 300 121.5
MLSRTK560X450N 560X450 560 450 1296 350 300 130.5
MLSETHK560N 560 560 560 1410 350 350 156.6
MLSRTK630X180N 630X180 630 180 1025 350 150 110
MLSRTK630X200N 630X200 630 200 1045 350 150 112.7
MLSRTK630X225N 630X225 630 225 1070 350 150 116.2
MLSRTK630X250N 630X250 630 250 1095 350 250 121.3
MLSRTK630X280N 630X280 630 280 1125 350 250 126.1
MLSRTK630X315N 630X315 630 315 1160 350 300 133.2
MLSRTK630X355N 630X355 630 355 1200 350 300 140.4
MLSRTK630X400N 630X400 630 400 1246 350 300 149.2
MLSRTK630X450N 630X450 630 450 1296 350 300 159.4
MLSRTK630X500N 630X500 630 500 1346 350 350 173.3
MLSETHK630N 630 630 630 1480 350 350 206.4
MLSRTK710X180N 710X180 710 180 1025 350 150 138.9
MLSRTK710X200N 710X200 710 200 1045 350 150 142.3
MLSRTK710X225N 710X225 710 225 1070 350 150 146.5
MLSRTK710X250N 710X250 710 250 1095 350 250 152.3
MLSRTK710X280N 710X280 710 280 1125 350 250 158.1
MLSRTK710X315N 710X315 710 315 1160 350 300 166.2
MLSRTK710X355N 710X355 710 355 1200 350 300 174.6
MLSRTK710X400N 710X400 710 400 1246 350 300 184.7
MLSRTK710X450N 710X450 710 450 1296 350 300 196.3
MLSRTK710X500N 710X500 710 500 1346 350 350 211.7
MLSRTK710X560N 710X560 710 560 1410 350 350 228.8
MLSETHK710N 710 710 710 1560 350 350 273.9
MLSETHK800N 800 800 800 1652 350 350 369.1
MLSETHK900N 900 900 900 1850 400 400 519
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.

    This range of spigot fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details.

  • 3rd party approved to EN 12201-3
