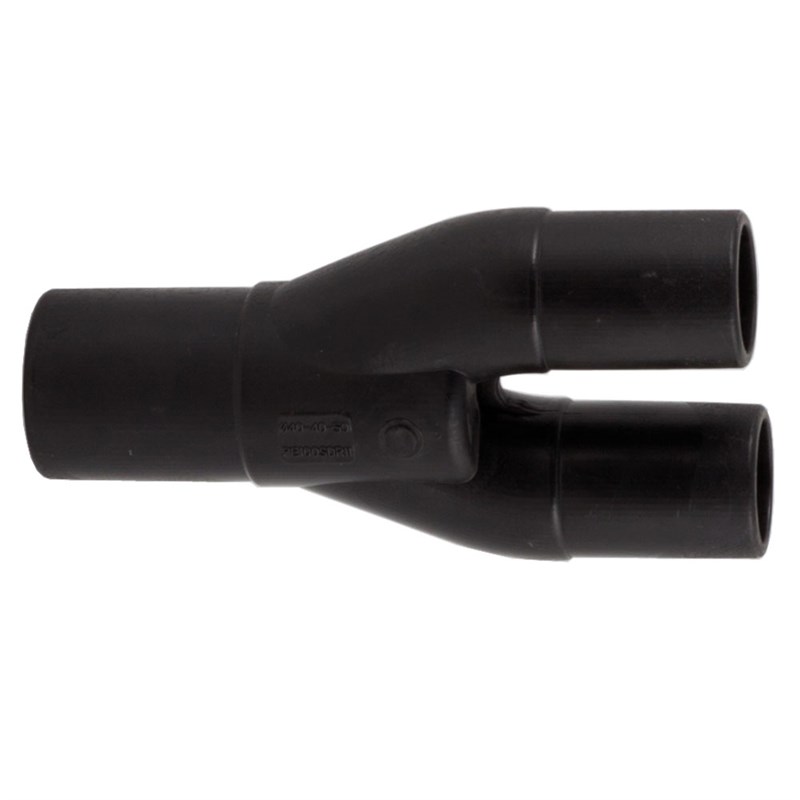

Spigot Y Piece

PE100, SDR 11

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Spigot Y Piece. For gas, water, mining and irrigation applications. PE100, SDR 11, Water PN16, Gas 10 Bar. Temperature range on spigot fittings -10˚C to +40˚C (Welding temperature range -10˚C to +40˚C using Fusamatic electrofusion systems. For butt fusion jointing +5˚C to +40˚C).

PE100, SDR 11, Spigot Y Piece for gas, water, mining and irrigation applications.

All fittings are manufactured in virgin PE100 black polyethylene.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1254/38-001
Material: Polyethylene (PE)
PN: PN 16

Features

  • Non Fusamatic branded
  • PE100 Black
  • Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • SDR 11

Downloads

Datasheet

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm
D
mm
D1
mm
L10
mm
L1
mm
L2
mm
Theoretical
weight / kg
YPHK32X25N 32X25 32 25 156 44 41 0.07
YPHK40X32N 40X32 40 32 165 50 44 0.11
YPHK50X40N 50X40 50 40 186 55 50 0.18
Enquiry
Scroll for more info

Components

Standards

  • The Fusion Group of Companies have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.

    This range of spigot fittings are 3rd party certified against the product standards listed (other product certificates are available upon request). Note: Regional variations may apply to some of the standards referenced, please contact us for further details.

  • 3rd party approved to EN 12201-3
  • 3rd party approved to EN 1555-3
