Spigot Reducing Tee

PE100, SDR 17

Fusion Sales and Product Enquiries

Contact

Fusion

Sales and Product Enquiries

Spigot Reducing Tee. For gas, water, mining and irrigation applications. PE100, SDR 17, Water PN10, Gas 6 Bar. Temperature range on spigot fittings -10˚C to +40˚C (Welding temperature range -10˚C to +40˚C using Fusamatic electrofusion systems. For butt fusion jointing +5˚C to +40˚C).

PE100, SDR 17, Spigot Reducing Tee for gas, water, mining and irrigation applications.

All fittings are manufactured in virgin PE100 black polyethylene.

The Fusion range of spigot fittings allows for complicated yet high performance pipeline systems.

Variant 1355/06-001
Material: Polyethylene (PE)
PN: PN 10

Features

  • Fusamatic branded (unless stated)
  • PE100 Black
  • Water PN10 / Gas 6 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations)
  • SDR 17

Downloads

Datasheet

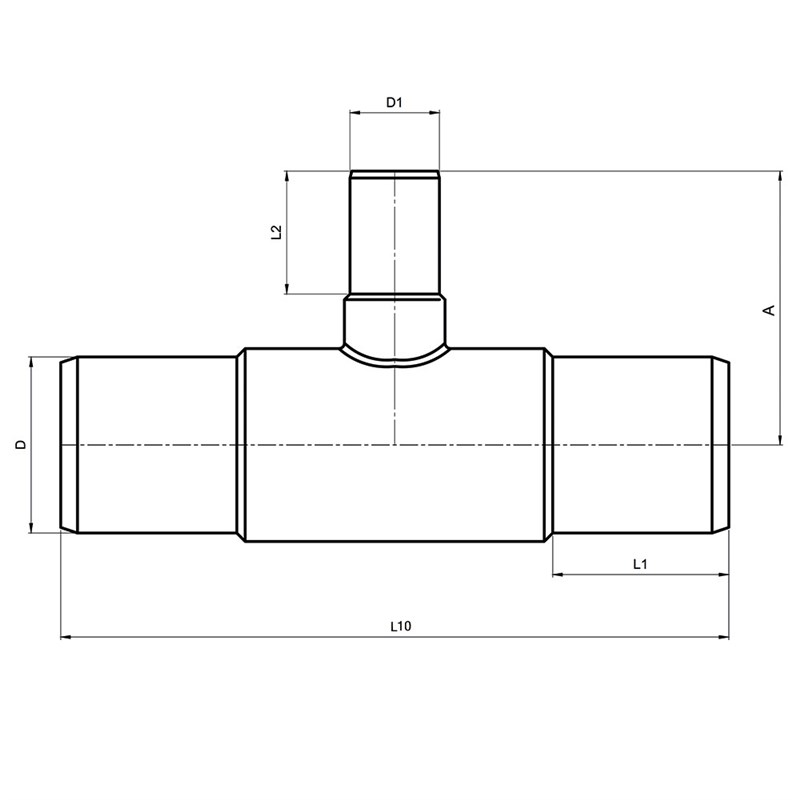

Reference nos. and dimensions:

Scroll for more info
Ref. no. Fitting Size
mm		 D
mm		 D1
mm		 L10
mm		 L1
mm		 L2
mm		 A
mm		 Theoretical
weight / kg		 Notes
LSRTHK280X110V 280X110 280 110 690 139 82 290 13.28
LSRTHK280X160V 280X160 280 160 690 139 98 302 13.76
LSRTHK280X200V 280X200 280 200 690 139 112 316 13.87
LSRTHK280X225V 280X225 280 225 690 139 120 320 14.41
LSRTHK280X250V 280X250 280 250 690 139 129 334 14.64
LSRTHK63X50V 63X50 63 50 217 61 56 103 0.22 Non Fusamatic Branded
LSRTHK75X50V 75X50 75 50 252 68 56 109 0.41 Non Fusamatic Branded
LSRTHK75X63V 75X63 75 63 261 70 63 121 0.39
LSRTHK90X50V 90X50 90 50 302 81 58 - 0.71 Non Fusamatic Branded
LSRTHK90X63V 90X63 90 63 290 79 63 132 0.61
LSRTHK90X75V 90X75 90 75 290 79 70 136 0.64
LSRTHK110X50V 110X50 110 50 335 90 57 - 0.99 Non Fusamatic Branded
LSRTHK110X63V 110X63 110 63 327 82 63 149 0.98
LSRTHK110X75V 110X75 110 75 327 82 70 151 1.05
LSRTHK110X90V 110X90 110 90 327 82 79 157 1.09
LSRTHK125X63V 125X63 125 63 358 90 70 - 1.26 Non Fusamatic Branded
LSRTHK125X90V 125X90 125 90 356 87 79 172 1.4
LSRTHK125X110V 125X110 125 110 356 87 82 176 1.5
LSRTHK140X63V 140X63 140 63 390 97 72 - 2.16 Non Fusamatic Branded
LSRTHK140X90V 140X90 140 90 380 92 79 175 1.73
LSRTHK140X110V 140X110 140 110 380 92 82 179 1.8
LSRTHK140X125V 140X125 140 125 380 92 87 184 1.85
LSRTHK160X63V 160X63 160 63 417 98 63 175 2.55
LSRTHK160X75V 160X75 160 75 417 98 70 182 2.65
LSRTHK160X90V 160X90 160 90 417 98 79 187 2.6
LSRTHK160X110V 160X110 160 110 417 98 82 195 2.7
LSRTHK160X125V 160X125 160 125 417 98 87 200 2.79
LSRTHK160X140V 160X140 160 140 417 98 92 200 2.8
LSRTHK180X63V 180X63 180 63 450 105 64 - 4.36 Non Fusamatic Branded
LSRTHK180X90V 180X90 180 90 458 105 79 206 3.5
LSRTHK180X110V 180X110 180 110 458 105 82 210 3.63
LSRTHK180X125V 180X125 180 125 458 105 87 215 3.6
LSRTHK180X160V 180X160 180 160 458 105 98 226 3.9
LSRTHK200X63V 200X63 200 63 481 112 63 191 4.48
LSRTHK200X90V 200X90 200 90 481 112 79 207 4.55
LSRTHK200X110V 200X110 200 110 481 112 82 211 4.65
LSRTHK200X125V 200X125 200 125 481 112 87 225 4.73
LSRTHK200X160V 200X160 200 160 481 112 98 227 4.91
LSRTHK200X180V 200X180 200 180 500 116 112 - 6.75 Non Fusamatic Branded
LSRTHK225X75V 225X75 225 75 561 129 72 219 7.06 Non Fusamatic Branded
LSRTHK225X90V 225X90 225 90 527 120 79 222 6.38
LSRTHK225X110V 225X110 225 110 527 120 82 226 6.5
LSRTHK225X125V 225X125 225 125 527 120 87 239 6.51
LSRTHK225X160V 225X160 225 160 527 120 98 242 6.69
LSRTHK225X180V 225X180 225 180 540 120 106 - 6.96 Non Fusamatic Branded
LSRTHK250X90V 250X90 250 90 590 129 79 243 8.35
LSRTHK250X110V 250X110 250 110 590 129 82 251 8.45
LSRTHK250X125V 250X125 250 125 590 129 87 252 8.46
LSRTHK250X160V 250X160 250 160 590 129 98 267 8.71
LSRTHK250X180V 250X180 250 180 596 130 109 - 9.56 Non Fusamatic Branded
LSRTHK250X200V 250X200 250 200 590 129 112 278 9.05
LSRTHK250X225V 250X225 250 225 590 129 120 285 9.56
LSRTHK315X110V 315X110 315 110 712 150 82 293 16.35
LSRTHK315X125V 315X125 315 125 703 152 105 - 18.03 Non Fusamatic Branded
LSRTHK315X160V 315X160 315 160 712 150 98 303 16.73
LSRTHK315X180V 315X180 315 180 703 152 116 - 18.24 Non Fusamatic Branded
LSRTHK315X200V 315X200 315 200 712 150 112 317 16.8
LSRTHK315X225V 315X225 315 225 712 150 120 320 17.22
LSRTHK315X250V 315X250 315 250 712 150 129 332 17.75
LSRTHK355X110V 355X110 355 110 690 180 90 - 20.6 Non Fusamatic Branded
LSRTHK355X160V 355X160 355 160 685 180 101 - 20.94 Non Fusamatic Branded
LSRTHK355X225V 355X225 355 225 674 174 120 - 20.94 Non Fusamatic Branded
LSRTHK355X250V 355X250 355 250 685 175 130 - 21.4 Non Fusamatic Branded
LSRTHK400X110V 400X110 400 110 755 190 89 - 29 Non Fusamatic Branded
LSRTHK400X160V 400X160 400 160 755 190 102 - 29.1 Non Fusamatic Branded
LSRTHK400X225V 400X225 400 225 755 190 120 - 29.92 Non Fusamatic Branded
LSRTHK450X160V 450X160 450 160 676 197 100 - 31.8 Non Fusamatic Branded
LSRTHK450X225V 450X225 450 225 765 198 122 - 40 Non Fusamatic Branded
LSRTHK450X315V 450X315 450 315 887 198 155 - 48 Non Fusamatic Branded
LSRTHK500X160V 500X160 500 160 710 215 99 - 39.54 Non Fusamatic Branded
LSRTHK500X250V 500X250 500 250 960 240 135 - 46.4 Non Fusamatic Branded
LSRTHK560X250V 560X250 560 250 960 240 135 - 70.8 Non Fusamatic Branded
LSRTHK630X160V 630X160 630 160 800 255 101 - 66.2 Non Fusamatic Branded
LSRTHK630X250V 630X250 630 250 875 255 137 - 80.2 Non Fusamatic Branded
