Transition Adaptor, Female Thread
Transition adaptor (Brass not coated) with female thread for gas, water, wastewater, irrigation and mining applications. PE100, SDR 11, Grade of Brass - CW617N/CW511L, BSPP Thread, Water PN16, Gas 10 Bar. Temperature range -10˚C to +40˚C. Electrofusion jointing temperature -10˚C to +40˚C (When using Fusamatic electrofusion systems).

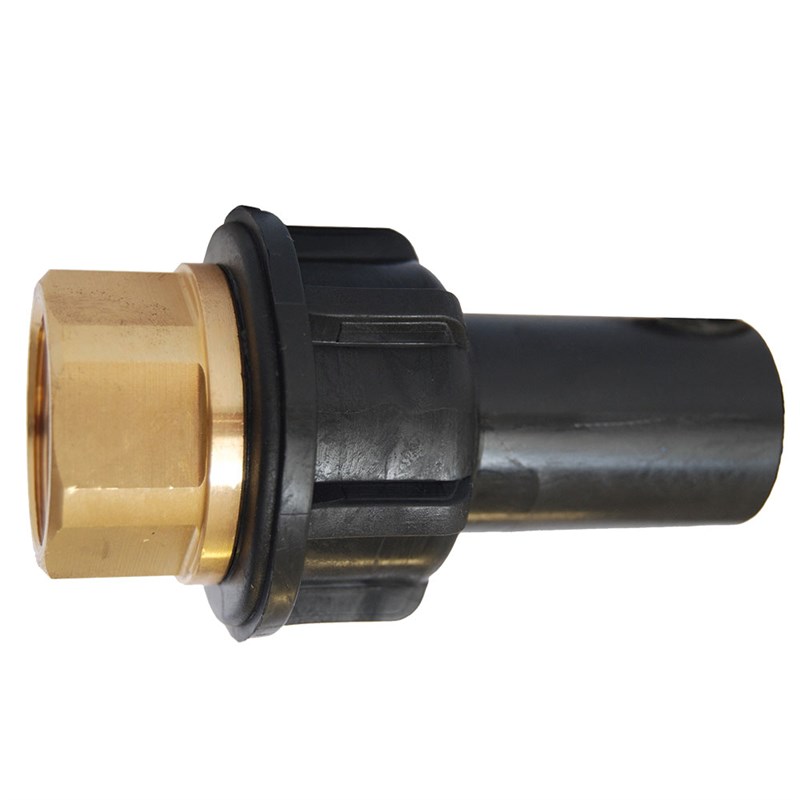

PE100 transition adaptor (Brass not coated) with female thread. For gas, water, wastewater, irrigation and mining applications. All fittings are manufactured using virgin PE100 black polyethylene.
Transition fittings are a quick and easy way to connect various types of metallic pipes to PE pipe systems. A simple but effective solution for house connections.
| Variant 1350/10-001 | |
|---|---|
| Material: | Polyethylene (PE) |
| PN: | PN 16 |
Features
- All fittings are manufactured using virgin PE100 black polyethylene
- Grade of brass - CW617N/CW511L
- BSPP thread (Allows transition between metric and threaded imperial connections)
- Water PN16 / Gas 10 Bar (All stated technical specifications depend on PE pipe welded to and any local pipeline pressure regulations)
- SDR 11
- Fusion branded
Downloads

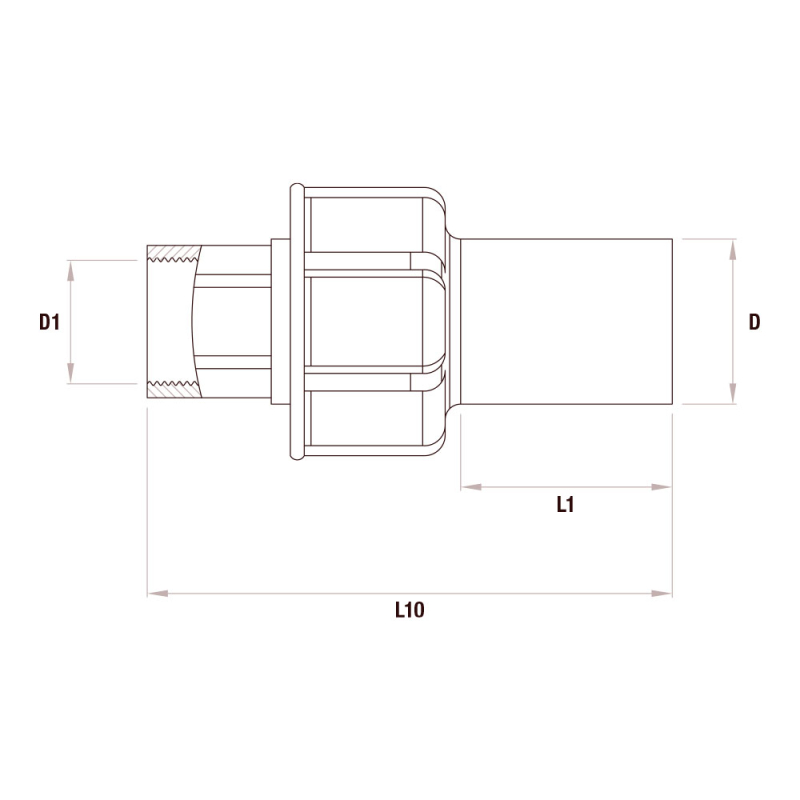

Reference nos. and dimensions:
| Ref. no. | Fitting Size mm |
D mm |
D1 mm |
L10 mm |
L1 mm |
SDR Range |
Theoretical weight / kg |
Notes |
|---|---|---|---|---|---|---|---|---|
| AX67110 | 20X0.5F | 20 | 1/2" | 82 | 38 | 11 | 0.09 | |
| AX67111 | 25X0.75F | 25 | 3/4" | 91 | 40 | 11 | 0.15 | |
| AX67112 | 32X1F | 32 | 1" | 100 | 44 | 11 | 0.2 | |
| AX67173 | 40X1F | 40 | 1" | 100 | 44 | 11 | 0.2 | |
| AX67113 | 40X1.25F | 40 | 1-1/4" | 109 | 49 | 11 | 0.32 | |
| AX67174 | 40X1.5F | 40 | 1-1/2" | 109 | 49 | 11 | 0.32 | |
| AX67114 | 50X1.5F | 50 | 1-1/2" | 124 | 54 | 11 | 0.38 | |
| AX67176 | 63X1.5F | 63 | 1-1/2" | 165 | 73 | 11 | 0.89 | |
| AX67115 | 63X2F | 63 | 2" | 141 | 63 | 11 | 0.6 | |
| AX67116 | 75X2.5F | 75 | 2-1/2" | 163 | 73 | 11 | 0.9 | |
| AX67117 | 90X3F | 90 | 3" | 181 | 82 | 11 | 1.15 | |
| AX67118 | 110X4F | 110 | 4" | 190 | 84 | 11 | 1.87 | |
| AX67119 | 125X4F | 125 | 4" | 165 | 91 | 11 | 1.92 | Non Fusion Branded |
Components
Standards
-
Fusion have numerous local and international product approvals as well as ISO 9001 and ISO 29001 quality management system approvals.
Fusion branded transition adaptors are designed and manufactured to the product standards listed (other product certificates are available upon request). - EN 12201-3
- EN 1555-3
-
4MS Compliant brass grades
Note: Regional variations may apply to some of the standards referenced. Please contact us for further details.
