PE Ball Valves

Series 85 PE Ball Valves are an extensive range of PE100 Ball Valves ranging from OD20mm - OD180mm. Suitable for gas, water, wastewater, irrigation and mining applications. PE Ball Valves are made from high performance PE100 material and can be welded to all PE100 and PE80 pipes making the valve an integral part of the fully welded leak-free pipe system.

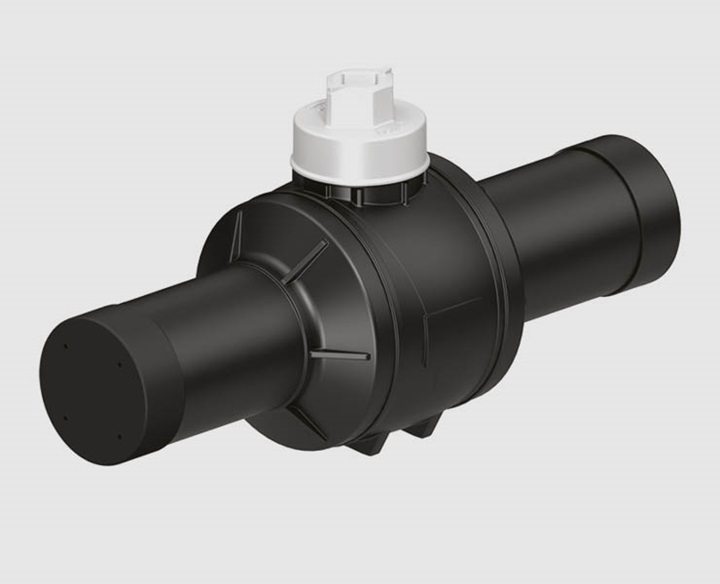

Certus PE Ball Valve

Minimum full bore for all body sizes ensures limited pressure drop and greater flow through the valve
Seat, ball and grease combination ensures low operating torques and avoids sticking over time
Grease with minimal wearing off from the lubricated surfaces for improved long term performance
Easy mounting of all standardised spindles due to internal and external drive
Overtorque protection and replaceable top cap under live conditions
Available with double spigot outlet allowing for a second electrofusion weld if needed
Traccoding (barcode) and Assist (QR code) - asset management to record, track and identify where valves are located and ensure traceability at all times
Seat compression accurately set during automated welding process
All valves individually tested
Maintenance free design
Fully traceable components
Valve position indicator
Quarter turn operation
Designed for installation and operation below ground

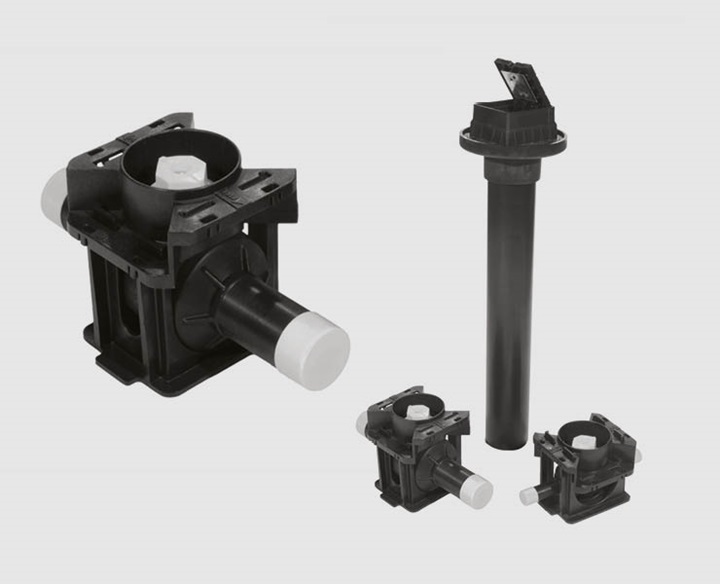

To complement the Certus PE Ball Valves, various installation and access kits are available, providing customers with flexible options, from valve-only purchases to comprehensive kits, ensuring high-quality and accessible solutions.

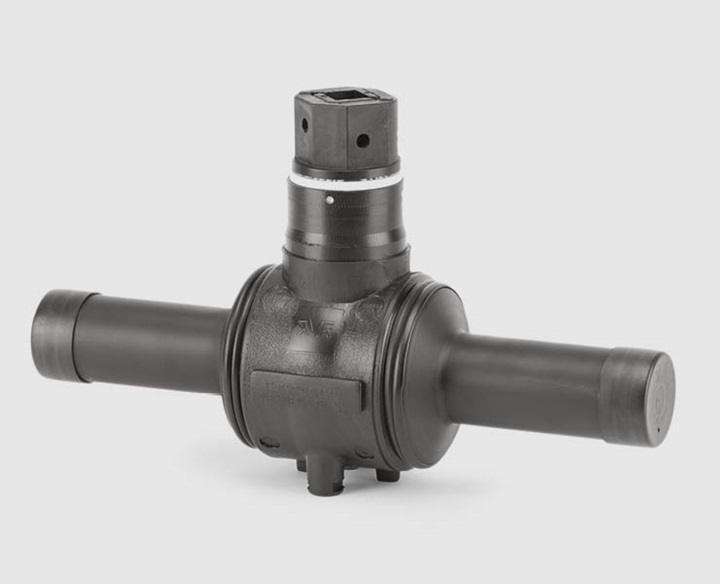

Magnus PE Ball Valve

Minimum full bore for all body sizes ensures limited pressure drop and greater flow through the valve
Robust design, suitable for most harsh environments
Material selection body and spigot (PE100)
Seat, ball and grease combination ensures low operating torques and avoids sticking over time
Selected ball material offering good scratch resistance
Grease with minimal wearing off from the lubricated surfaces for improved long term performance
Easy mounting of all standardised spindles due to internal and external drive
Overtorque protection and replaceable top cap under live conditions
Available with double spigot outlet allowing for a second electrofusion weld if needed
Traccoding (barcode) and Assist (QR code) - asset management to record, track and identify where valves are located and ensure traceability at all times
Seat compression of large sealing surfaces precisely set via separate pre-assembly
Flexible spindle shaft to ensure equal compression around the O-rings when loaded by internal pressure

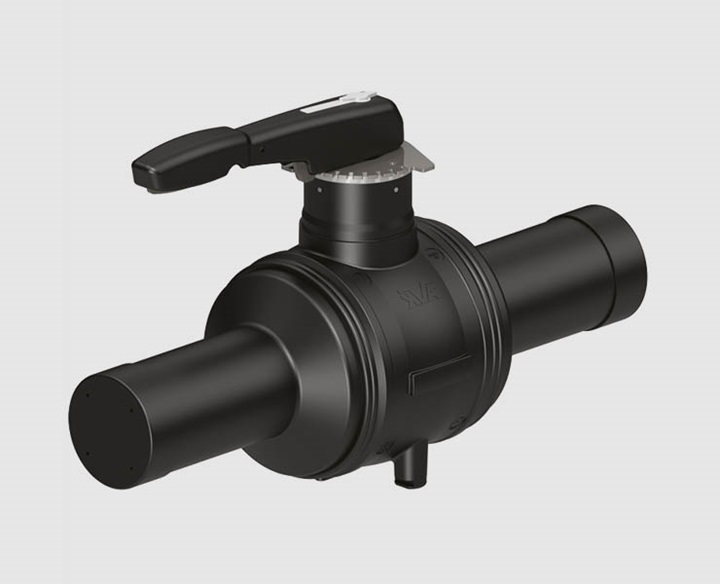

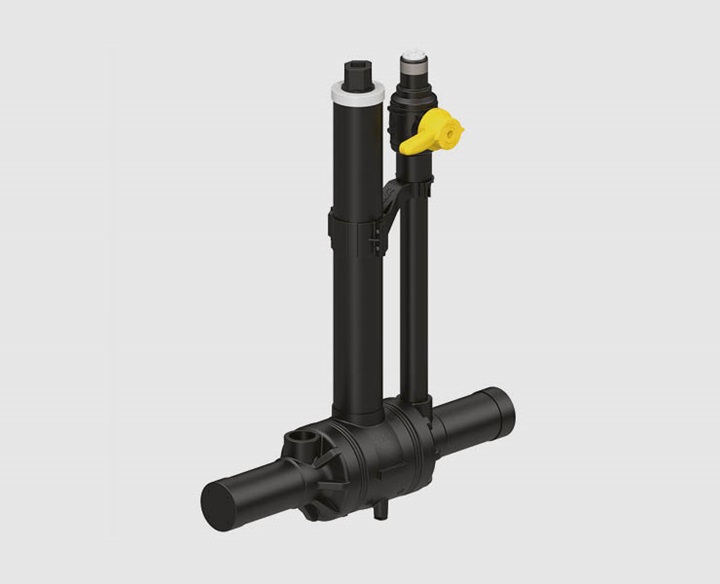

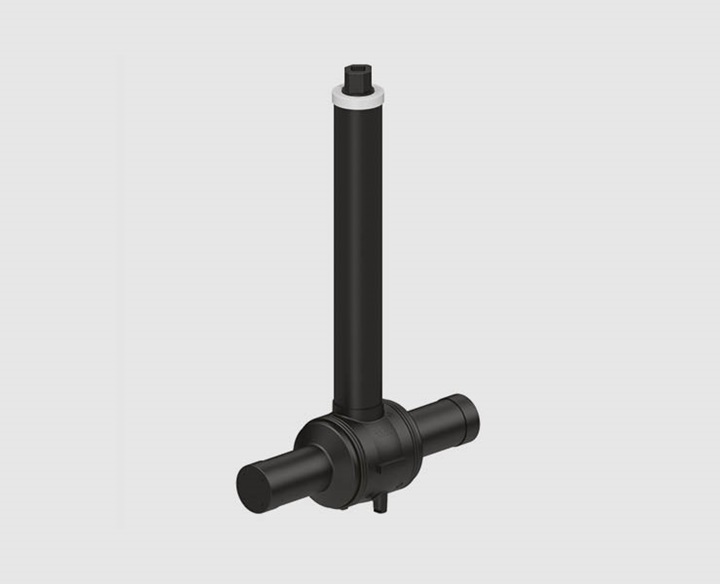

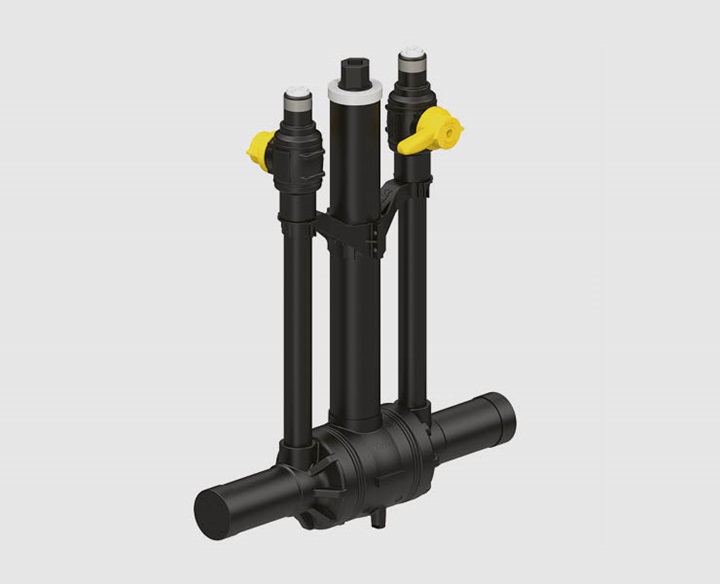

Magnus PE Ball Valves are also available with different options including operating lever (on sizes OD25 - OD180mm), stem extension (on sizes OD63 - OD180mm) and stem extension with one or two purge points (on sizes OD63 - OD180mm).
